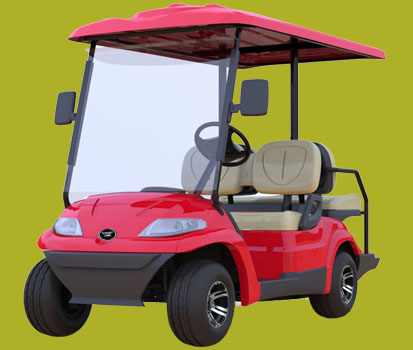

Express 2+2
Model No |
EXPRESS 2+2 |
Motor |
48V , 3.7KW |
Battery |
Gel Battery |
Charger |
Onboard charger |
Transaxle |
Continuously variable |
Overall dimension |
2760*1200*1800mm |
Ground clearance |
100mm |
Tread distance |
Front:900mm/Rear:1000mm |
Net weight (with battery) |
550 kg |
Loading |
4 people |
Forward speed |
23-40km/h |
Braking distance |
<=4m |
Turning radius |
2,9m |
Climbing ability |
safe climbing 25% |
Maximum mileage |
80-100km |
-
Express 4
Model No |
EXPRESS 4 |
Motor |
48V , 3.7KW |
Battery |
Gel Battery |
Charger |
Onboard charger |
Transaxle |
Continuously variable |
Overall dimension |
3160*1200*1800mm |
Ground clearance |
100mm |
Tread distance |
Front:900mm/Rear:1000mm |
Net weight (with battery) |
510 kg |
Loading |
4 people |
Forward speed |
23-40km/h |
Braking distance |
<=6m |
Turning radius |
4m |
Climbing ability |
safe climbing 25% |
Maximum mileage |
80-100km |
-

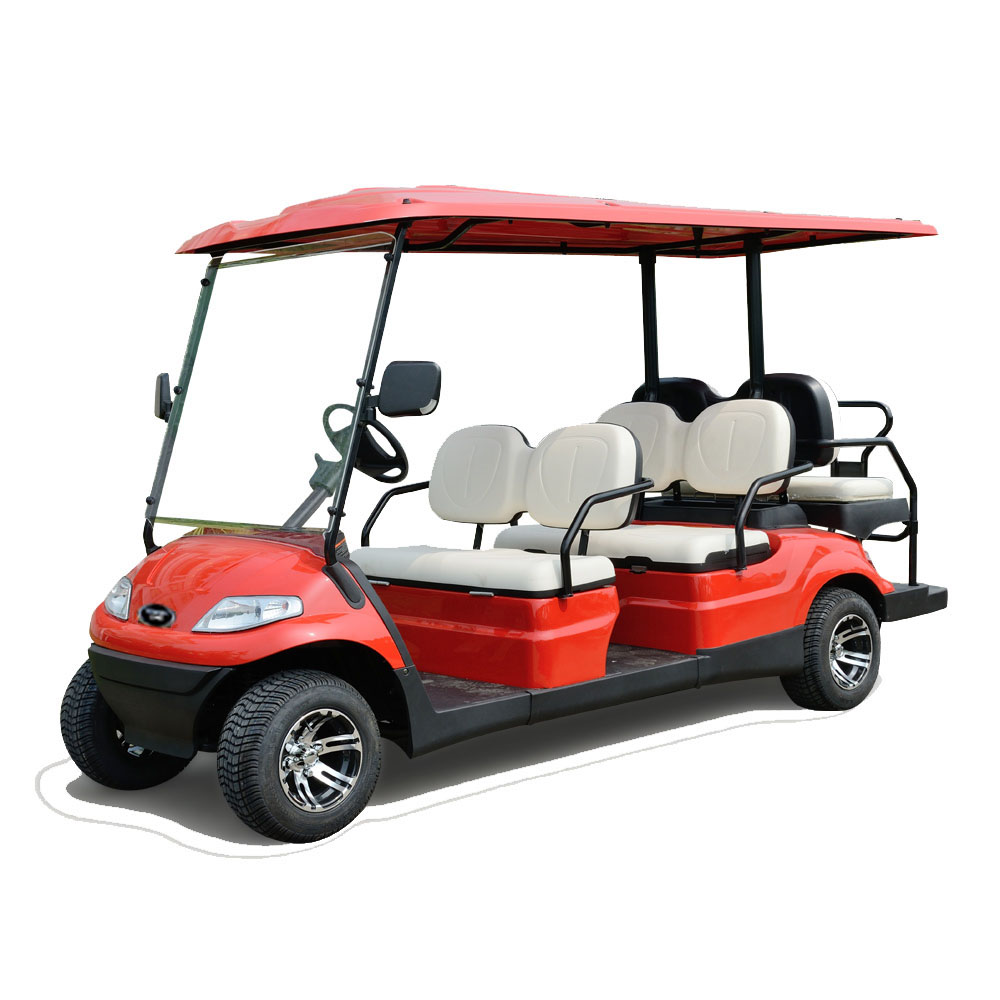

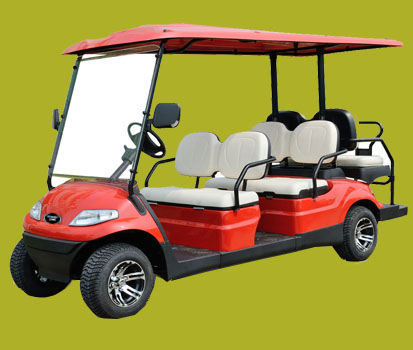

Express 4+2
Model No |
EXPRESS 4+2 |
Motor |
48V , 3.7KW |
Battery |
Gel Battery |
Charger |
Onboard charger |
Transaxle |
Continuously variable |
Overall dimension |
3520*1200*1800mm |
Ground clearance |
100mm |
Tread distance |
Front:900mm/Rear:1000mm |
Net weight (with battery) |
590 kg |
Loading |
6 people |
Forward speed |
23-40km/h |
Braking distance |
<=6m |
Turning radius |
4m |
Climbing ability |
safe climbing 25% |
Maximum mileage |
80-100km |
-

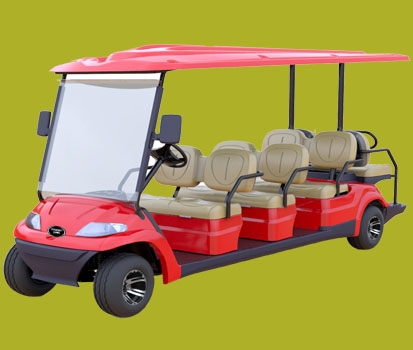

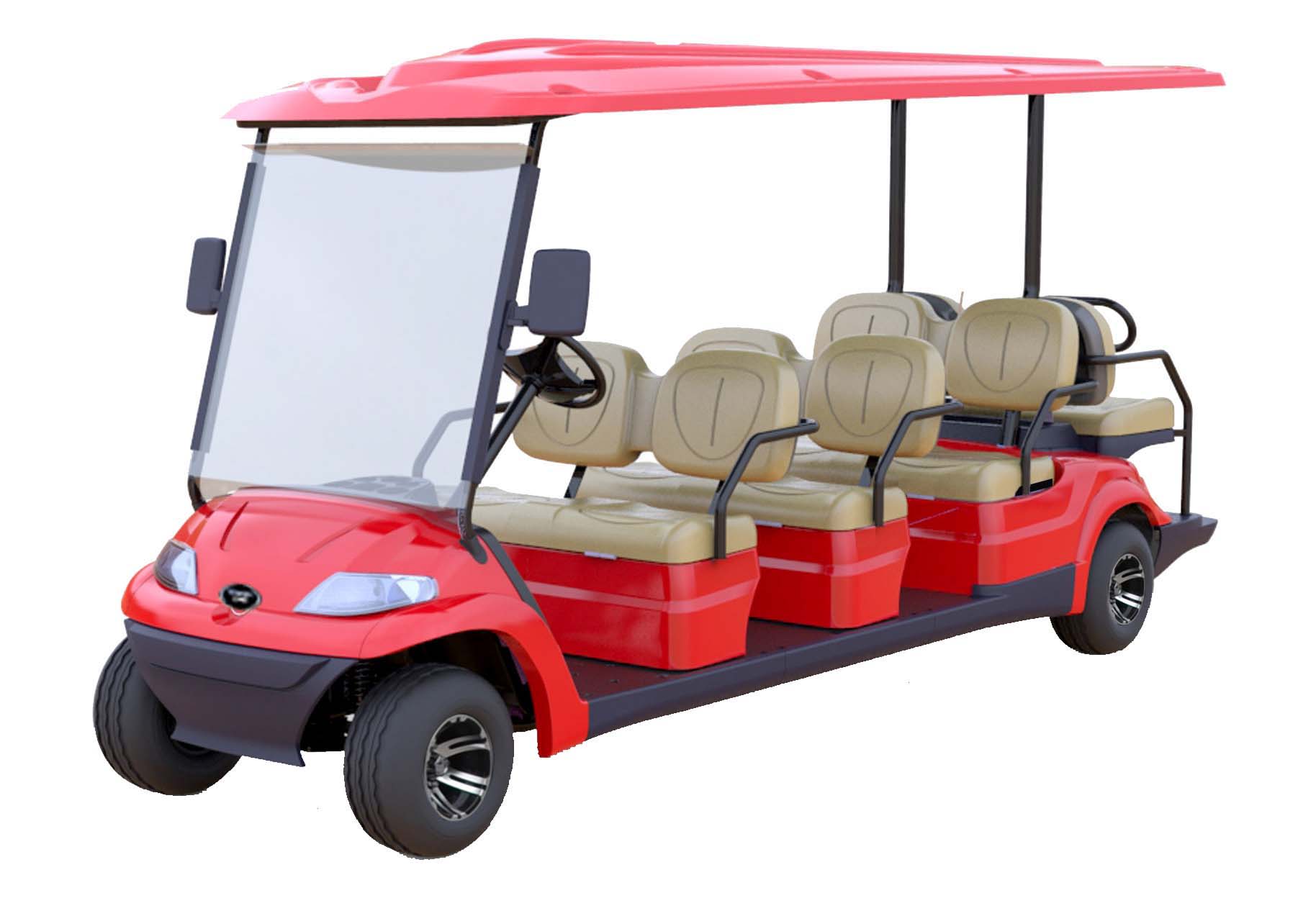

Express 6+2
Model No |
EXPRESS 6+2 |
Motor |
48V , 3.7KW |
Battery |
Gel Battery |
Charger |
Onboard charger |
Transaxle |
Continuously variable |
Overall dimension |
4280*1200*1800mm |
Ground clearance |
100mm |
Tread distance |
Front:900mm/Rear:1000mm |
Net weight (with battery) |
630 kg |
Loading |
8 people |
Forward speed |
23-40km/h |
Braking distance |
<=8m |
Turning radius |
5.1m |
Climbing ability |
safe climbing 25% |
Maximum mileage |
80-100km |
-

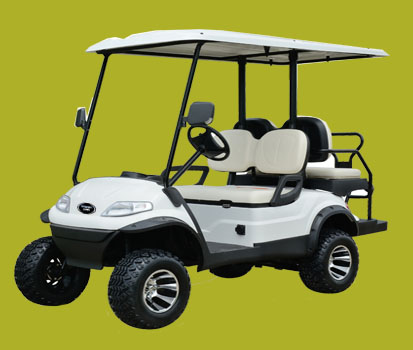

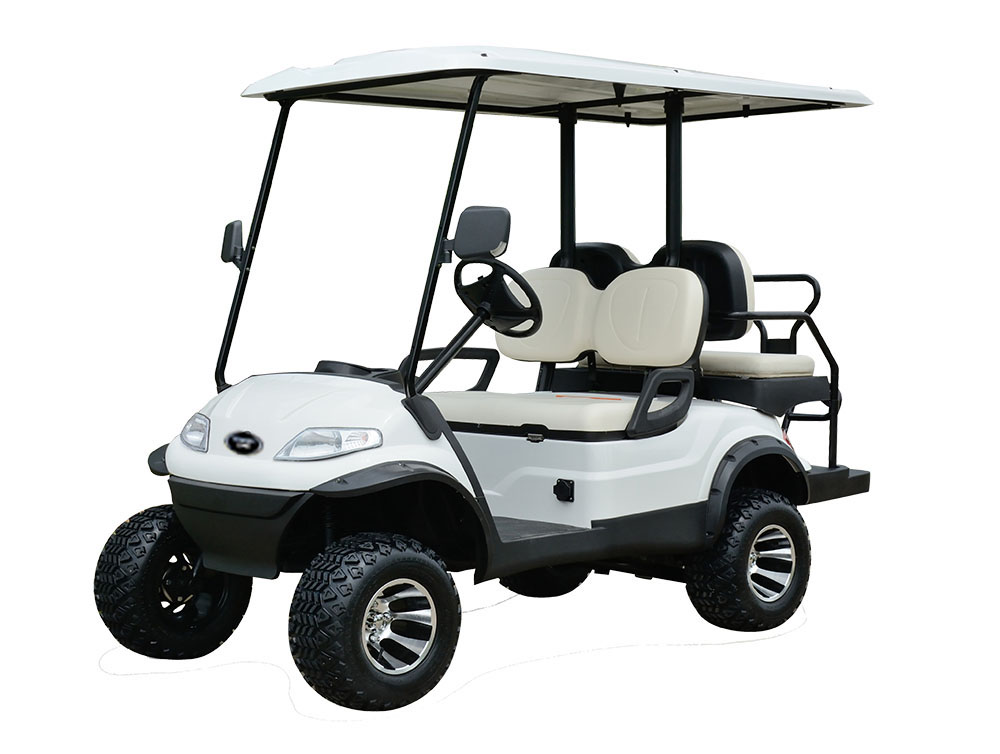

Express Lifted 2+2
Model No |
EXPRESS LIFTED 2+2 |
Motor |
48V , 3.7KW |
Battery |
Gel Battery |
Charger |
Onboard charger |
Transaxle |
Continuously variable |
Overall dimension |
2760*1305*1960mm |
Ground clearance |
120mm |
Tread distance |
Front:1060mm/Rear:1050mm |
Net weight (with battery) |
530 kg |
Loading |
4 people |
Forward speed |
23-40km/h |
Tire diameter |
AT20*10-10 |
Braking distance |
6m |
Turning radius |
3.6m |
Climbing ability |
safe climbing 20% |
Maximum mileage |
70-90km |
-

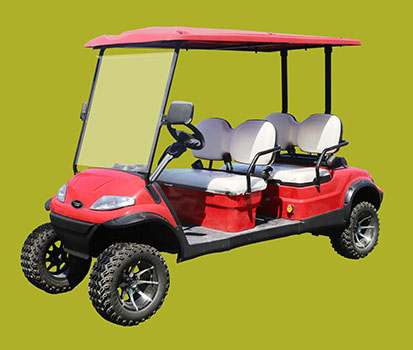

Express Lifted 4
Model No |
EXPRESS LIFTED 4 |
Motor |
48V , 3.7KW |
Battery |
Gel Battery |
Charger |
Onboard charger |
Transaxle |
Continuously variable |
Overall dimension |
3530*1305*1960mm |
Ground clearance |
120mm |
Tread distance |
Front:1060mm/Rear:1050mm |
Net weight (with battery) |
570 kg |
Loading |
4 people |
Forward speed |
23-40km/h |
Tire diameter |
AT20*10-10 |
Braking distance |
6m |
Turning radius |
5m |
Climbing ability |
safe climbing 18% |
Maximum mileage |
70-80km |
-

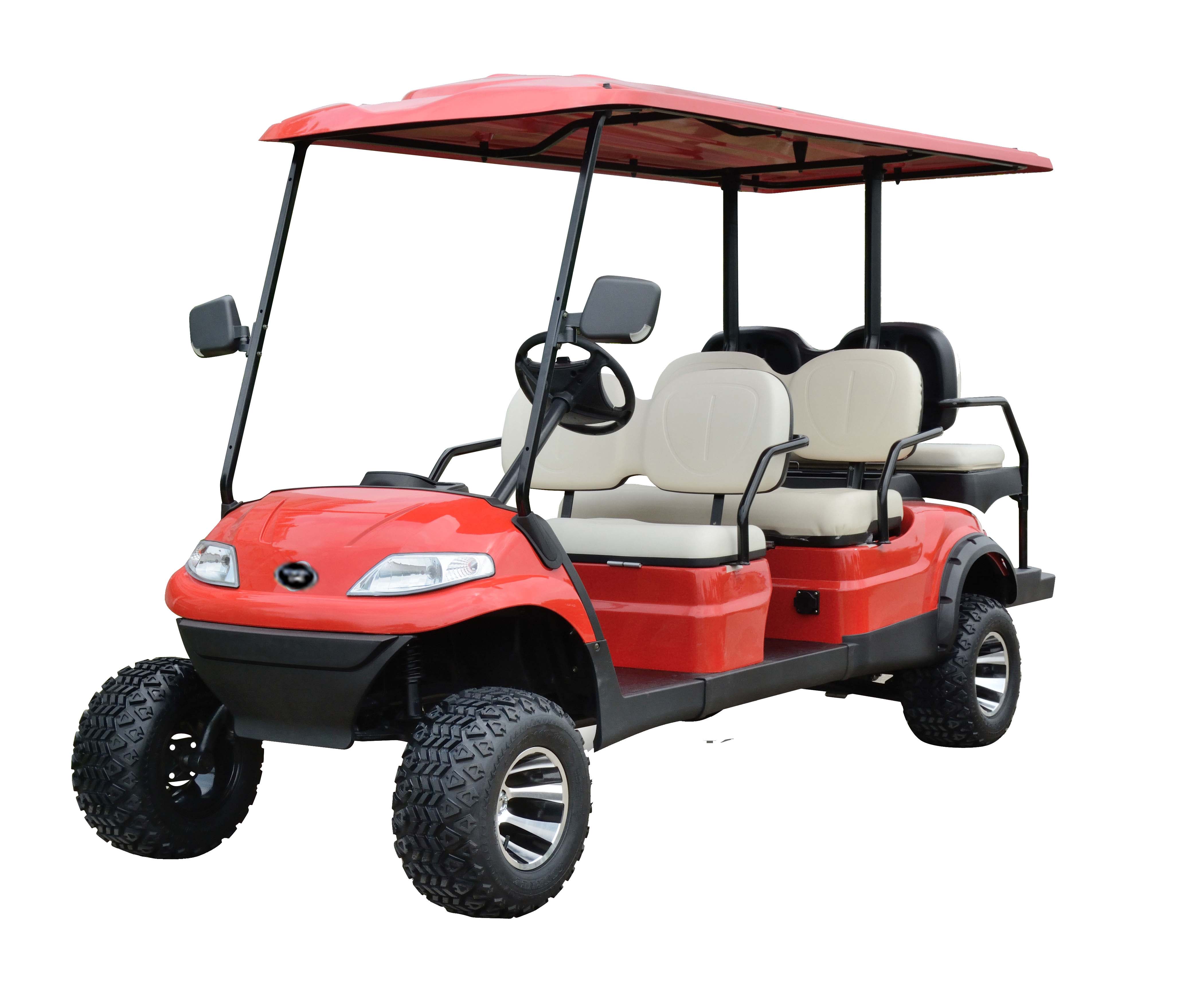

Express Lifted 4+2
Model No |
EXPRESS LIFTED 4+2 |
Motor |
48V , 3.7KW |
Battery |
Gel Battery |
Charger |
Onboard charger |
Transaxle |
Continuously variable |
Overall dimension |
3530*1305*1960mm |
Ground clearance |
120mm |
Tread distance |
Front:1060mm/Rear:1050mm |
Net weight (with battery) |
570 kg |
Loading |
6 people |
Forward speed |
23-40km/h |
Tire diameter |
AT20*10-10 |
Braking distance |
6m |
Turning radius |
5m |
Climbing ability |
safe climbing 18% |
Maximum mileage |
70-80km |
|
